| Part #: UC-251-6FP | Manufacturer: Parker |
|
Price/UOM :
$31.57
|
Availability : 9 In Stock |
| UOM: EA |
| Description: |

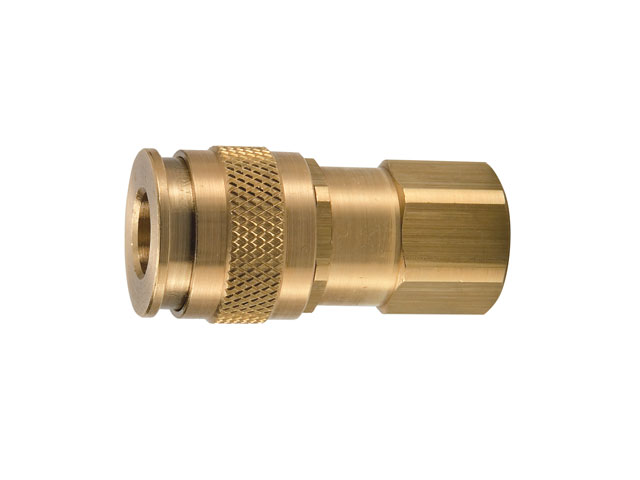

Parker UC series Universal push-to-connect quick disconnect coupler. The 1/4" UC Series Coupler will accept the industrial interchange, [(MIL-C-4109F) and (ANSI/(NFPA) T3.20.14-1990)], 10 Series (Tru-Flate) and the 50 series (ARO 210) style nipples.
|
| Body Size: | 1/4 Inch |
| Thread 1: | 3/8 NPTF |
| Max Pressure: | 150 PSI (10 bar) |
| Material: | Brass |
| UOM: | EA |
| Quick Coupler Type: | Pneumatic Push-to-Connect |
| Interchange: | Universal |
| Application: | Pneumatic |
| Series: | UC |
| Configuration Type: | Female NPTF |
| Max Pressure Range: | 100 to 249 PSI (7 to 17 bar) |
| Inch/Metric: | Inch |
| Thread 1 Type: | NPTF |
| Coupler/Nipple/Shell: | Coupler |
| Parker Division: | Quick Coupling |
| Parker Group: | Fluid Connector |
| Part Number Tags: | N/A |
