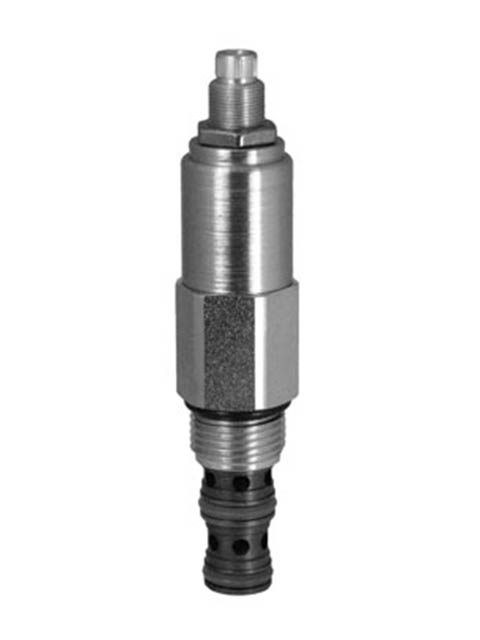

*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.
| Part #: SV103S20 | Manufacturer: Parker |
|
Price/UOM :
$157.80
|
Availability : 1 In Stock |
| UOM: EA |
| Description: |
SV103 Series Sequence Valve - Direct Acting - Internal Read More... |
| Rated Flow: | 56.3 LPM (15 GPM) |
| Leakage: | 82 cc/min. (5 cu. in./min.) @ 210 Bar (3000 PSI) |
| Max Pressure: | 250 Bar (3600 PSI) |
| Operating Temperature: | -45C to +93.3C (-50F to +200F) |
| Seals: | “D”-Ring |
| Pressure Range: | 28 - 138 Bar (400 - 2000 PSI) |
| Adjustment Type: | Screw |
| Common Cavity: | Size 10, 3-way |
| Valve Body: | B10-3 |
| UOM: | EA |
| Valve Type: | Sequence Valve |
| Valve Type Detail: | Direct Acting - Internal |
| Series: | SV103 |
| Port: | None - Cartridge Only |
| Common Cavity Type: | Size 10, 3-way |
| Parker Division: | Hydraulic Cartridge Systems |
| Parker Group: | Hydraulic |
| Part Number Tags: | N/A |
