| Part #: RF-251-4FP | Manufacturer: Parker |
|
Price/UOM :
POR
|
Availability : Backordered |
| UOM: EA |
| Description: |

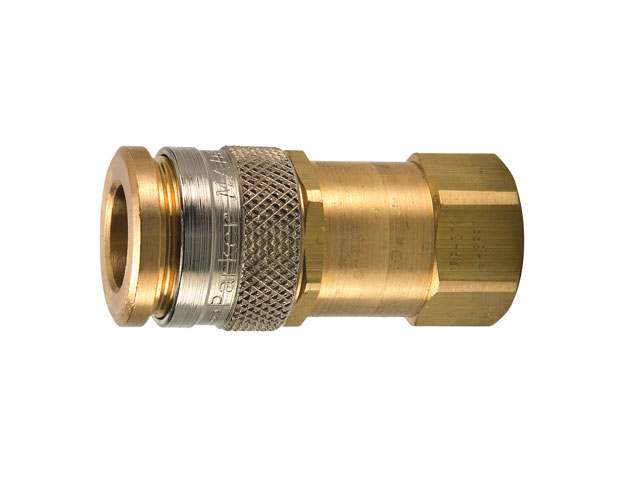

Parker RF Series high flow push-to-connect quick disconnect coupler has been designed to increase the flow through and reduce the pressure drop over the coupling. Push-To-Connect design for easy one hand connection with integral sleeve guard to protect against accidental disconnection. Read More... |
| Body Size: | 1/4 Inch |
| Thread 1: | 1/4 NPSF |
| Max Pressure: | 300 PSI (20 bar) |
| Material: | Brass |
| UOM: | EA |
| Quick Coupler Type: | Pneumatic Push-to-Connect |
| Interchange: | European High Flow |
| Application: | Pneumatic |
| Series: | RF |
| Configuration Type: | Female NPSF |
| Max Pressure Range: | 250 to 499 PSI (17 to 34 bar) |
| Inch/Metric: | Inch |
| Thread 1 Type: | NPSF |
| Coupler/Nipple/Shell: | Coupler |
| Parker Division: | Quick Coupling |
| Parker Group: | Fluid Connector |
| Part Number Tags: | N/A |
