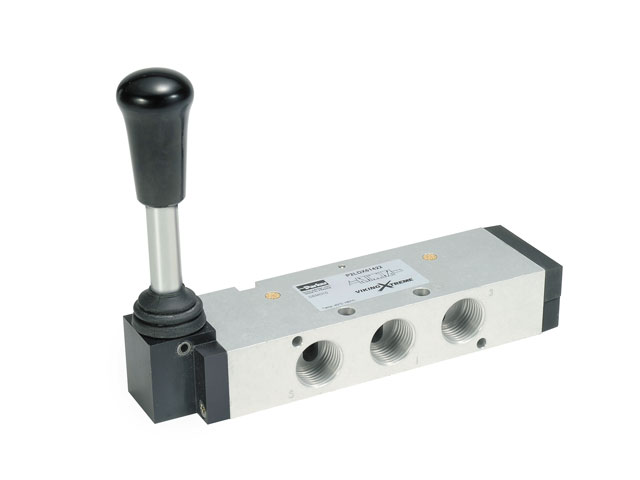

P2LDX594VS Viking Xtreme Series Manual/Mechanical Valve - 4-way 2-position Inline Perpendicular Lever

*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.

Viking Xtreme Series Manual/Mechanical Valve - 4-way 2-position Inline Perpendicular Lever

Part #: P2LDX594VS	Manufacturer: Parker
Price/UOM : $369.18	Availability : 8 In Stock
	UOM: EA

Description:

Parker heavy duty inline lever operated pneumatic valves designed for applications requiring very rugged construction.

Product Attributes

Port:

1/2 NPT

CV Factor:

2.7

Operator Type Detail:

Inline Perpendicular Lever

Offset Return Type:

Spring Return

UOM:

Series:

Viking Xtreme

Pneumatic Valve Type:

Manual/Mechanical

Port Inch/BSP:

NPT

Valve Passages:

4-way

Valve Positions:

2-position

Operator Type:

Manual/Mechanical

Supply Pressure Range:

Vacuum to 174 PSI (Vacuum to 12 bar)

Operating Temperature:

-40°F to 140°F (-40°C to 60°C)

Parker Division:

Pneumatic

Parker Group:

Automation
