*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.
| Part #: DSL103ATN | Manufacturer: Parker |
|
Price/UOM :
$131.70
|
Availability : Backordered |
| UOM: EA |
| Description: |

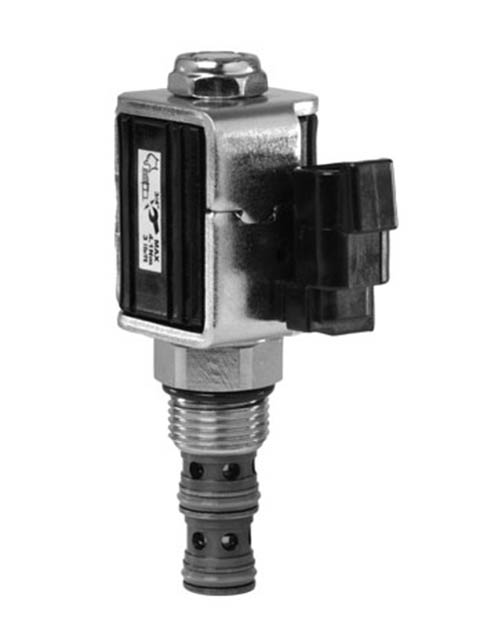

DSL103 Series Solenoid Valve - Spool Type - 3-Way
|
| Rated Flow: | 17.0 LPM (4.5 GPM) |
| Leakage: | 120 cc/min. (7.5 in3/min.) at 250 Bar (3600 PSI) |
| Max Pressure: | 250 Bar (3600 PSI) |
| Screen: | None |
| Override Type: | Push & Twist (N.C. & N.O.) |
| Operating Temperature: | -40C to +93.3C (-40F to +200F) |
| Seals: | Nitrile |
| Common Cavity: | Size 10, 3-way |
| Valve Body: | B10-3 |
| UOM: | EA |
| Valve Type: | Solenoid Valve |
| Valve Type Detail: | Spool Type - 3-Way |
| Series: | DSL103 |
| Port: | None - Cartridge Only |
| Valve Style: | 3-way or 4-way spool (see catalog for flow paths) |
| Common Cavity Type: | Size 10, 3-way |
| Parker Division: | Hydraulic Cartridge Systems |
| Parker Group: | Hydraulic |
| Part Number Tags: | N/A |
