| Part #: DSL084NV | Manufacturer: Parker |
|
Price/UOM :
$103.20
|
Availability : Backordered |
| UOM: EA |
| Description: |

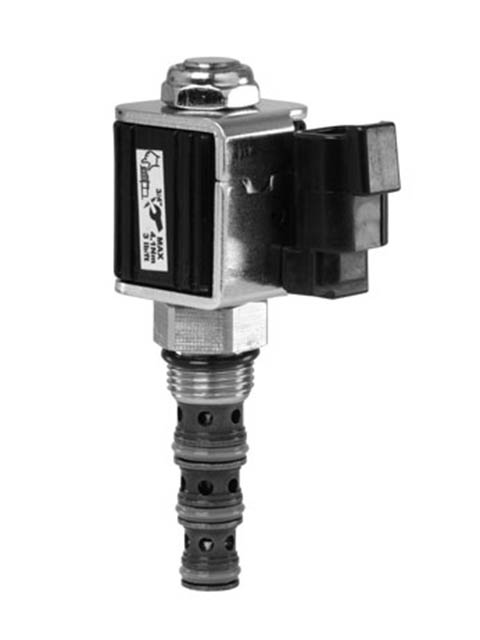

DSL084 Series Solenoid Valve - Spool Type - 4-Way Read More... |
| Rated Flow: | 11-15 LPM (3-4 GPM) |
| Leakage: | 160 cc/min. (10 in3/min.) at 250 Bar (3600 PSI) |
| Max Pressure: | 250 Bar (3600 PSI) |
| Screen: | None |
| Override Type: | None |
| Operating Temperature: | -31.7C to +121.1C (-25F to +250F) |
| Seals: | Fluorocarbon |
| Common Cavity: | Size 08, 4-way |
| Valve Body: | B08-4 |
| UOM: | EA |
| Valve Type: | Solenoid Valve |
| Valve Type Detail: | Spool Type - 4-Way |
| Series: | DSL084 |
| Port: | None - Cartridge Only |
| Valve Style: | 3-way or 4-way spool (see catalog for flow paths) |
| Common Cavity Type: | Size 08, 4-way |
| Parker Division: | Hydraulic Cartridge Systems |
| Parker Group: | Hydraulic |
| Part Number Tags: | N/A |
