| Part #: 940883Q | Manufacturer: Parker |
|
Price/UOM :
$131.96
|
Availability : Backordered |
| UOM: EA |
| Description: |
Parker patented coreless Ecoglass replacement filter element for 50CS Series medium pressure filters reduces disposal costs and environmental impact Read More... |
| Element Length: | Single |
| Nominal Filter Rating: | 10 micron |
| Efficiency βx(C) ≥ 200: | 9 µ |
| Efficiency βx(C) ≥ 1000: | 12 µ |
| Collapse Pressure (bar): | 10.3 bar |
| Collapse Pressure (psi): | 150 psi |
| Filter Media Type: | Ecoglass III |
| Operating Temperature: | -15F to 225F (-26C to 107C) |
| Seals: | FKM: Fluorocarbon |
| UOM: | EA |
| Series: | 50CS |
| Element Type: | Coreless |
| Media Composition Detail: | Multilayer fiberglass with PBT mesh on both sides |
| Filter Media Code: | 10QE |

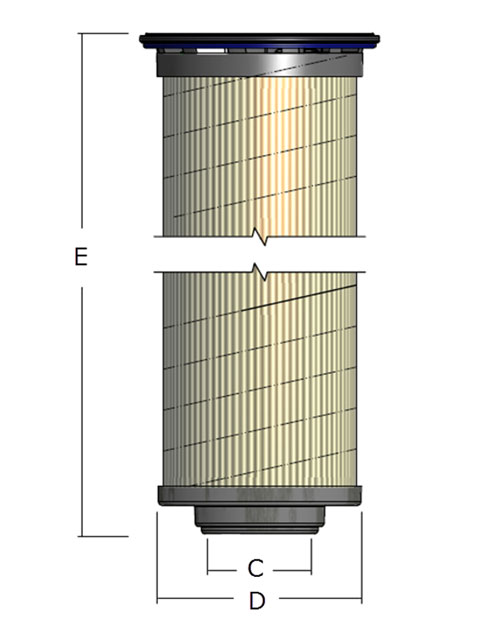

| C Dimension: | 1.81 in (46 mm) |
| D Dimension: | 3.82 in (97 mm) |
| E Dimension: | 9.17 in (233 mm) |
| Top Endcap Material: | Glass reinforced nylon |
| Bottom Endcap Material: | Glass reinforced nylon |
| Glue Side Seam Adhesive: | Polyurethane |
| Glue Endcaps Adhesive: | Polyurethane |
| Element Weight (kg): | 2.2 |
| Parker Division: | Hydraulic Filter |
| Parker Group: | Filtration |
| Part Number Tags: | N/A |
