*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.
| Part #: 66PTC-5/32-2 | Manufacturer: Parker |
|
Price/UOM :
$16.76
|
Availability : 4 In Stock |
| UOM: EA |
| Description: |

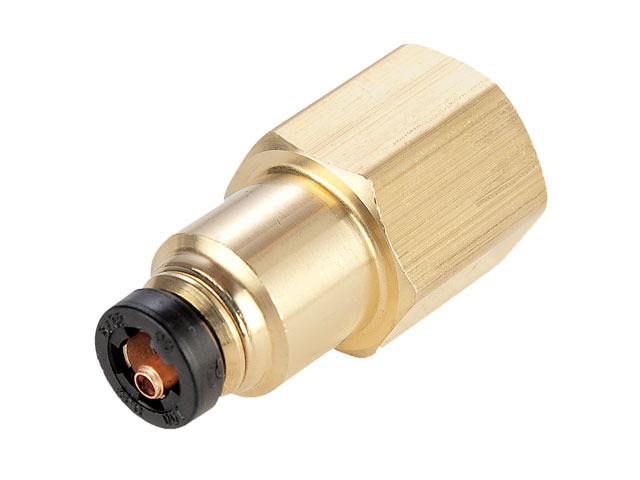

Parker's PTC Metal Series Female Connector is a push-to-connect fitting that meets SAE and D.O.T. specifications.
Designed for all D.O.T truck and trailer applications, Parker PTC fittings reduce assembly time versus
compression style fittings. Read More... |
| Outer Diameter 1: | 3/8 Inch |
| Thread 1: | 3/8 NPT |
| Material: | Brass |
| UOM: | EA |
| Series: | PTC Metal |
| Configuration Type: | Tube to Female |
| Configuration Sub-Type: | Female Connector |
| Outer Diameter 1 Inch/mm: | Inch |
| Inch/Metric: | Inch |
| Thread 1 Type: | NPT |
| Pressure Range: | Up to 250 PSI |
| Operating Temperature: | -40°F to +200°F |
| Parker Division: | Fluid Systems Connector (Brass Products) |
| Parker Group: | Fluid Connector |
| Application: | Transportation: Heavy Duty Truck, Trailer, Mobile |
| Specific Application: | Air Brakes, Air Tanks, Air Ride, Sliders, Tire Inflation, Primary & Secondary, Air Lines, Cab Contro |
| SAE Compliance: | SAE J1131 & SAE J2494-3 and D.O.T. FMVSS571.106 |
| Part Number Tags: | N/A |
