6509 56 18WP2 LIQUIfit 6509 - Inch

LIQUIfit 6509 - Inch

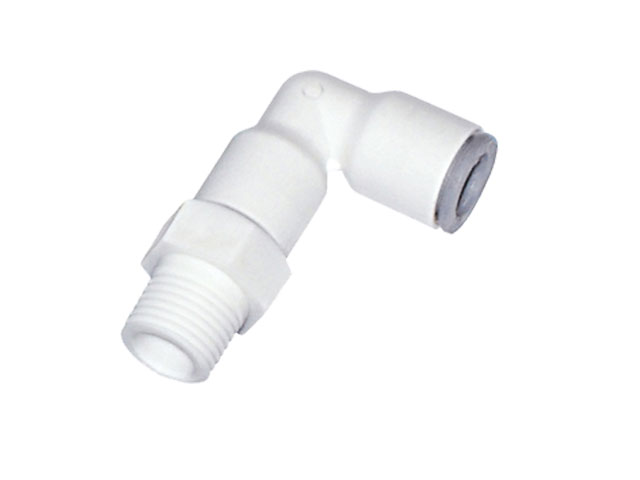

Male Elbow Swivel 90° - Push-in Water & Beverage Fitting

Part #: 6509 56 18WP2 Manufacturer: Parker
Price/UOM: $3.13In Stock!
Availability : 50 In Stock

Parker/Legris LIQUIfit Series Male Elbow Swivel 90° offers an “eco-designed” innovative push-to-connect alternative for water and beverage applications; no fluid contamination occurs and environmental protection is guaranteed. Patented sealing technology 100% leak-tested in production.
Email this page to a friend

Product Attributes

Outer Diameter 1: 1/4 Inch
Thread 1: 3/8 NPT
Material: Polypropylene
Trade Name: LIQUIfit
Series: LIQUIfit
Configuration Type: Tube to Male
Configuration Sub-Type: Male Elbow Swivel 90°
Outer Diameter 1 Inch/mm: Inch
Inch/Metric: Inch
Thread 1 Type: NPT
Pressure Range: Up to 230 psi
Operating Temperature: -14˚ to 200˚F
Parker Division: Fluid Systems Connector (Brass Products)
Parker Group: Fluid Connector
Application: Water, Beverages, Food, CO2
Specific Application: Meets FDA, NSF 51 and NSF 61 requirements

Part Number Tags: N/A
