601-4 601 Series

601 Series

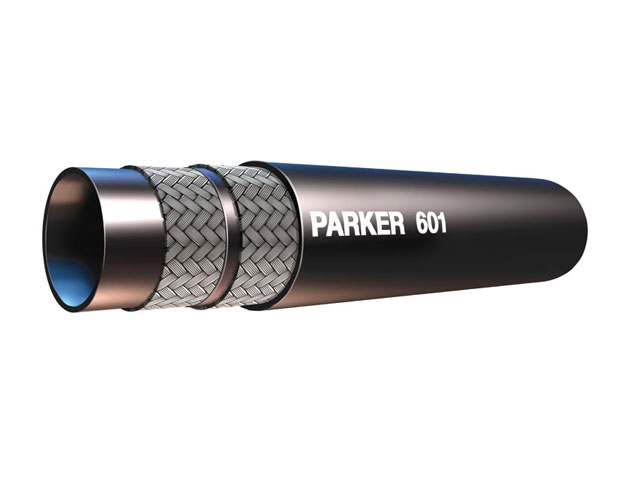

Low Pressure Rubber Hydraulic Hose

Part #: 601-4 Manufacturer: Parker
Price/UOM: $3.69In Stock!
Availability : 1047 In Stock

Medium pressure tough cover hydraulic hose for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Synthetic rubber. Reinforcement: Two Fiber braids. Cover: Synthetic rubber, MSHA accepted.

Product Attributes

Inner Diameter: 0.25 Inch
Working Pressure: 1250 PSI (90 bar)
Material: Rubber
Series: 601
Hose Pressure Range: Low
Inch/Metric: Inch
Application: Hydraulic
Working Pressure Range: 1000 to 1999 PSI (69 to 138 bar)
Inner Diameter Inch/mm: Inch
Parker Division: Hose Products
Parker Group: Fluid Connector
Specification: SAE 100R3
Application: Hydraulic
Specific Application: Petroleum base hydraulic fluids and lubricating oils
