*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.
| Part #: 431-16 | Manufacturer: Parker |
|
Price/UOM :
POR
|
Availability : 287 In Stock |
| UOM: FT |
| Description: |

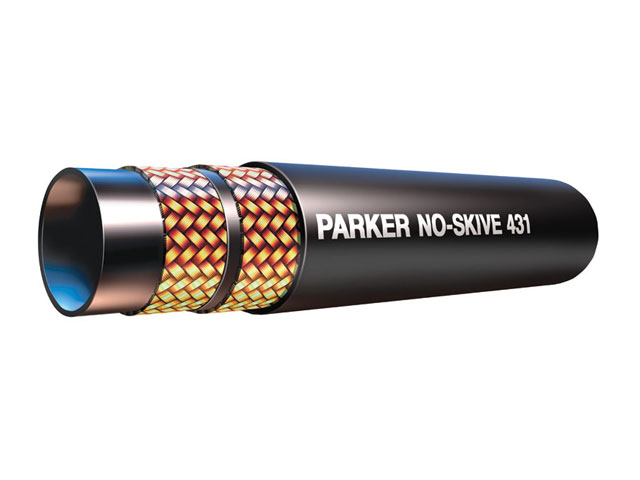

Medium pressure hydraulic hose for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Synthetic rubber. Reinforcement: Two braids steel wire. Cover: Synthetic rubber, MSHA accepted. Read More... |
| Inner Diameter: | 1 Inch |
| Working Pressure: | 2000 PSI (140 bar) |
| Material: | Rubber |
| Mating Fitting Series: | 43, 42 |
| UOM: | FT |
| Hose Category: | Hydraulic Industry Standard |
| Application: | Hydraulic |
| Series: | 431 |
| Hose Pressure Range: | Medium |
| Inch/Metric: | Inch |
| Distinct Properties: | Compact |
| Working Pressure Range: | 2000 to 2999 PSI ( 138 to 207 bar) |
| Inner Diameter Inch/mm: | Inch |
| Mating End Fitting Series: | 43, 42 |
| Parker Division: | Hose Products |
| Parker Group: | Fluid Connector |
| Specification: | SAE 100R16 / ISO 11237 TYPE R16 |
| Application: | Hydraulic |
| Specific Application: | Petroleum base hydraulic fluids and lubricating oils |
| Distinct Properties: | Compact |
| Part Number Tags: | N/A |
