| Part #: 422-5 | Manufacturer: Parker |
|
Price/UOM :
$8.04
|
Availability : 732 In Stock |
| UOM: FT |
| Description: |

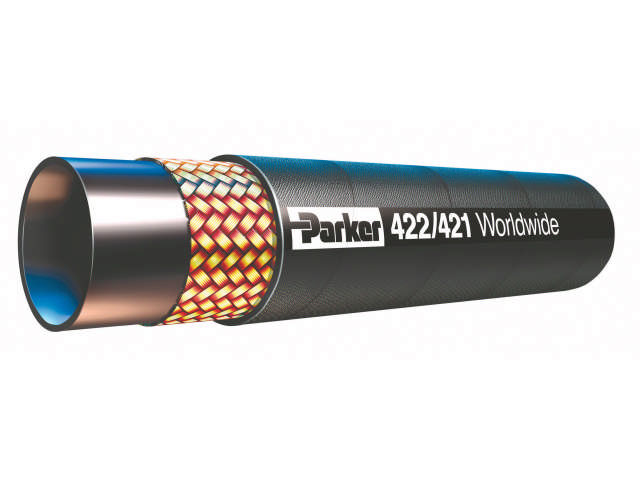

Medium pressure hydraulic hose for use with petroleum base hydraulic fluids and lubricating oils. Inner Tube: Nitrile rubber. Reinforcement: One braid steel wire. Cover: Synthetic rubber. Read More... |
| Inner Diameter: | 0.313 Inch |
| Working Pressure: | 3125 PSI (220 bar) |
| Material: | Rubber |
| Mating Fitting Series: | 43, 42 |
| UOM: | FT |
| Hose Category: | Hydraulic Industry Standard |
| Application: | Hydraulic |
| Series: | 422 |
| Hose Pressure Range: | Medium |
| Inch/Metric: | Inch |
| Distinct Properties: | Worldwide DIN |
| Working Pressure Range: | 3000 to 3999 PSI (207 to 276 bar) |
| Inner Diameter Inch/mm: | Inch |
| Mating End Fitting Series: | 43, 42 |
| Parker Division: | Hose Products |
| Parker Group: | Fluid Connector |
| Specification: | ISO 1436-1 TYPE 1SN/SAE 100R1 TYPE AT / EN 853 TYPE 1SN |
| Application: | Hydraulic |
| Specific Application: | Petroleum base hydraulic fluids and lubricating oils |
| Distinct Properties: | Worldwide DIN |
| Part Number Tags: | N/A |
