26920-4-4 20 Series 26920

20 Series 26920

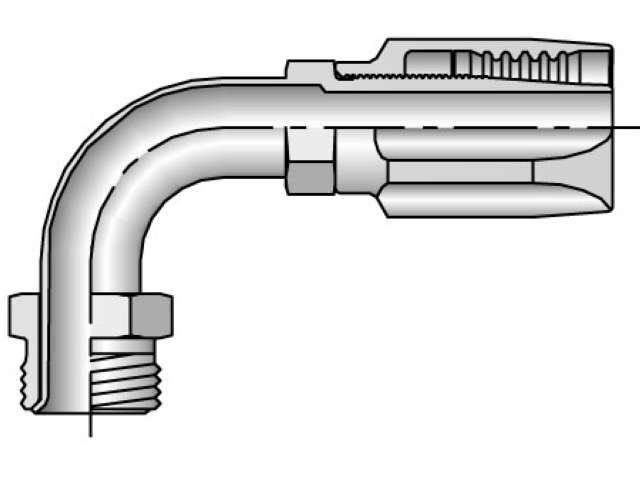

Field Attachable Shell & Nipple Male Inverted SAE 45° - Swivel - 90° Elbow

Part #: 26920-4-4 Manufacturer: Parker
Price/UOM: $18.71In Stock!
Availability: 47 In Stock
UOM: EA

Description:
20 Series Parker No-Skive Fitting is a field attachable (reusable) style fitting which permits quick, easy field assembly without special tools. Assembly of No-Skive hose and fittings does not require removal of outer cover of hose. This eliminates premature hose failure caused by skiving too long or short. 20 Series Fittings has zinc dichromate plating and are used on Parker 201-261, 206, 221FR, 225, 235, 266, SS25UL Hoses - the Parker Engine_Airbrake_Marine_Gas Hoses.
Email this page to a friend


Product Attributes


End 1: 1/4 Inch
Inner Diameter: 0.188 Inch
Material: Steel
UOM: EA
Series: 20
Configuration Type: Male Inverted SAE 45° - Swivel - 90° Elbow
Inch/Metric: Inch
Inner Diameter Inch/mm: Inch
Parker Division: Hose Products
Coupler/Nipple/Shell: Shell & Nipple
End 1 Type: Inch
Hose Connection Type: Field Attachable
Parker Group: Fluid Connector


Part Number Tags: N/A
