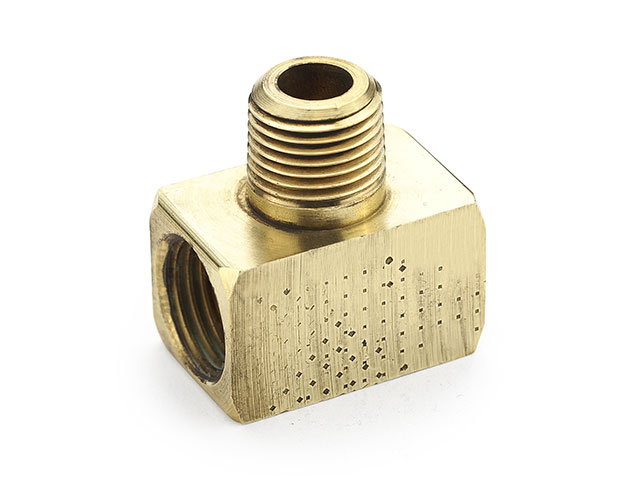

245IFHD-4-2 Male Branch Tee 245IFHD

Male Branch Tee 245IFHD

Parker 45° Inverted Flare Brass Male Branch Tee - Ref. SAE J512 040425

Part #: 245IFHD-4-2 Manufacturer: Parker
Price/UOM: $12.22In Stock!
Availability: 8 In Stock
UOM: EA

Description:
Parker 45° inverted flare fittings meet the functional requirements of SAE J512 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.
Email this page to a friend


Product Attributes


Outer Diameter 1: 1/4 Inch
Outer Diameter 2: 1/4 Inch
Thread 1: 7/16-24 UN/UNF
Thread 2: 7/16-24 UN/UNF
Thread 3: 1/8 NPT
Material: Brass
UOM: EA
Series: 45° Inverted Flare
Configuration Type: Flare to Male
Configuration Sub-Type: Male Branch Tee
Outer Diameter 1 Inch/mm: Inch
Outer Diameter 2 Inch/mm: Inch
Inch/Metric: Inch
Thread 3 Type: NPT
Thread 2 Type: UN/UNF
Thread 1 Type: UN/UNF
Parker Group: Fluid Connector
Parker Division: Fluid Systems Connector (Brass Products)
Operating Temperature: -65°F to +250°F
SAE Compliance: J512
SAE Reference: SAE 040425
Body Shape: Extruded
Pressure Rating: 1400 PSI


Part Number Tags: N/A
