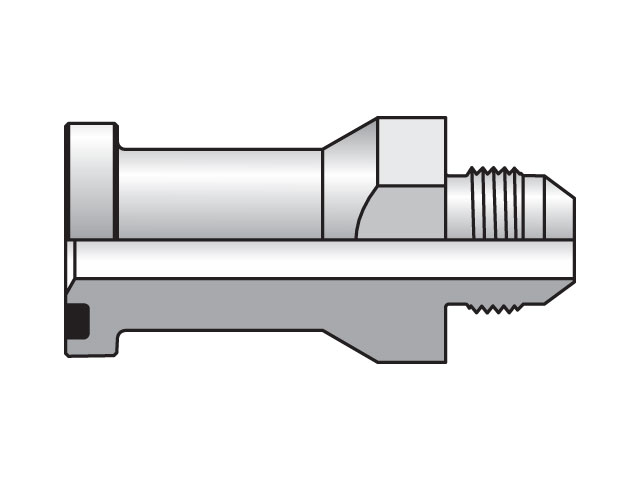

| Part #: 24 XHQ2-S | Manufacturer: Parker |
|
Price/UOM :
$151.04
|
Availability : 11 In Stock |
| UOM: EA |
| Description: |
The 4-bolt flange connections conforming to SAE J518 and ISO 6162-1 and -2 are proven, leak-free connections, especially suited for larger sizes, higher pressures and assembly in tight quarters. Parker 4-bolt flange products provide various means of connecting tubes, hoses, pipes and threaded fittings to 4-bolt flange ports. Read More... |
| End 1: | 1 1/2 Inch |
| End 2: | 1 1/2 Code 62 |
| Material: | Steel |
| UOM: | EA |
| Trade Name: | Triple-Lok |
| Series: | Flange |
| Tube Fitting/Adapter Type: | Flanges |
| Configuration Type: | Straight Flange Adapter |
| Configuration Sub-Type: | Code 62 Flange Connector Code 62 / 37° Flare |
| Inch/Metric: | Inch |
| End 1 Type: | Inch |
| End 2 Type: | Code 62 |
| Parker Division: | Tube Fitting |
| Parker Group: | Fluid Connector |
| Part Number Tags: | 24 XHQ2S, 24XHQ2S |
