20823-8-8 23 Series 20823

23 Series 20823

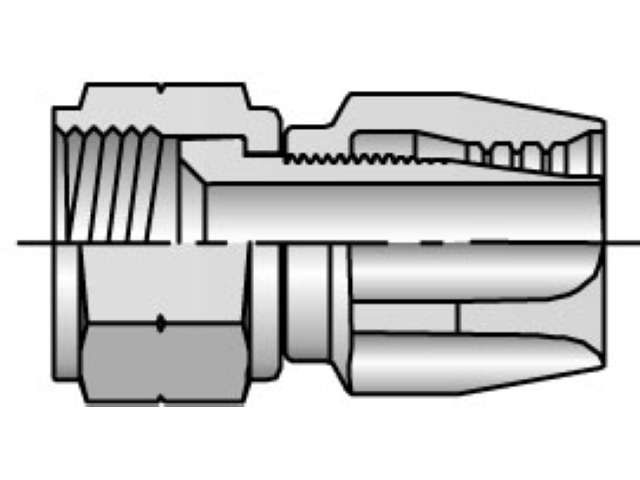

Field Attachable Shell & Nipple Female SAE 45° - Swivel - Straight

Part #: 20823-8-8 Manufacturer: Parker
Price/UOM: $14.01In Stock!
Availability : Backordered
UOM: EA

Description:
23 Series Parker No-Skive Fitting is a 3-piece mandrel style field attachable (reusable) fitting which permits quick, easy field assembly without special tools. Assembly of No-Skive hose and fittings does not require removal of outer cover of hose. This eliminates premature hose failure caused by skiving too long or short. 23 Series Fittings has zinc dichromate plating and are used on Parker 213 , 285 , 293 Hoses - the Parker Engine_Airbrake_Marine_Gas Hoses.


Product Attributes


End 1: 1/2 Inch
Inner Diameter: 0.406 Inch
Material: Steel
UOM: EA
Series: 23
Configuration Type: Female SAE 45° - Swivel - Straight
Inch/Metric: Inch
Coupler/Nipple/Shell: Shell & Nipple
End 1 Type: Inch
Hose Connection Type: Field Attachable
Inner Diameter Inch/mm: Inch
Parker Division: Hose Products
Parker Group: Fluid Connector


Part Number Tags: N/A
