| Part #: 16-6BP | Manufacturer: Parker |
|
Price/UOM :
$38.92
|
Availability : 242 In Stock |
| UOM: EA |
| Description: |

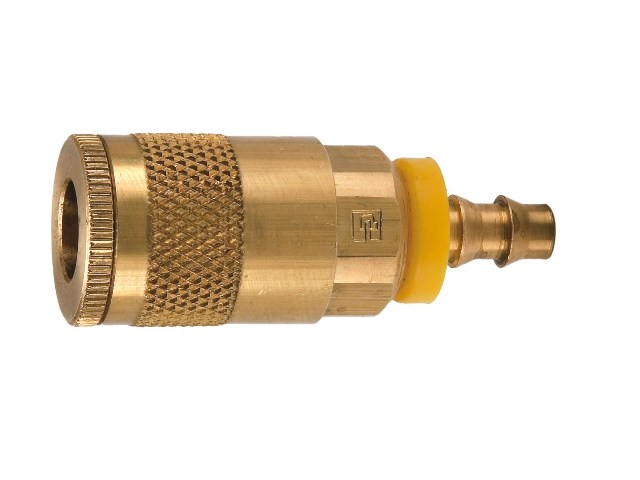

Parker 10 Series Tru-Flate Quick Disconnect Coupler are general purpose, single shut off, manual sleeve, quick disconnects. The manual ball locking mechanism requires two-handed operation to retract the sleeve for connection or disconnection. Read More... |
| Body Size: | 1/2 Inch |
| Inner Diameter: | 0.5 Inch |
| Max Pressure: | 300 PSI (20 bar) |
| Material: | Steel |
| UOM: | EA |
| Quick Coupler Type: | Pneumatic Manual Connect |
| Application: | Pneumatic |
| Trade Name: | Tru-Flate |
| Series: | 10 |
| Configuration Type: | Push-lok Hose Barb |
| Max Pressure Range: | 250 to 499 PSI (17 to 34 bar) |
| Inch/Metric: | Inch |
| Coupler/Nipple/Shell: | Coupler |
| Inner Diameter Inch/mm: | Inch |
| Parker Division: | Quick Coupling |
| Parker Group: | Fluid Connector |
| Part Number Tags: | N/A |
