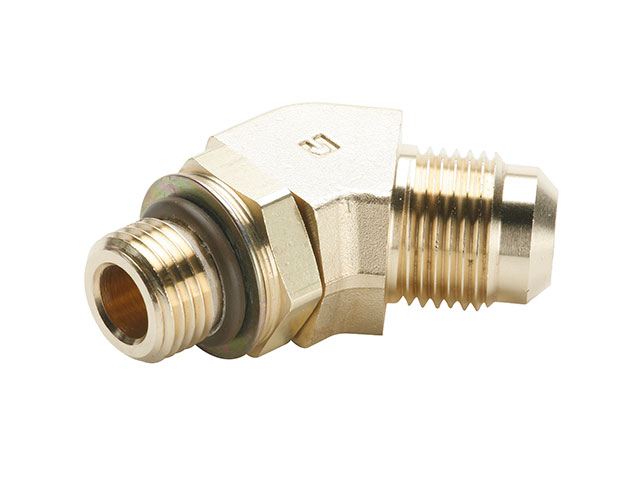

1595F-8-8 45° Flare to SAE Straight Thread 1595F

45° Flare to SAE Straight Thread 1595F

Parker 45° Flare Brass 45° Flare to SAE Straight Thread - Ref. SAE J512 and J513

Part #: 1595F-8-8 Manufacturer: Parker
Price/UOM: $18.87In Stock!
Availability : 93 In Stock

Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.

Product Attributes

Outer Diameter 1: 1/2 Inch
Thread 1: 3/4-16 UN/UNF
Thread 2: 3/4-16 SAE
Material: Brass
Series: 45° Flare
Configuration Type: Flare to Male
Configuration Sub-Type: Male Elbow 45°
Outer Diameter 1 Inch/mm: Inch
Inch/Metric: Inch
Thread 1 Type: UN/UNF
Thread 2 Type: SAE
Operating Temperature: -65°F to +250°F
Parker Division: Fluid Systems Connector (Brass Products)
Parker Group: Fluid Connector
SAE Compliance: J512 and J513
Body Shape: Forged
Pressure Rating: 750 PSI
