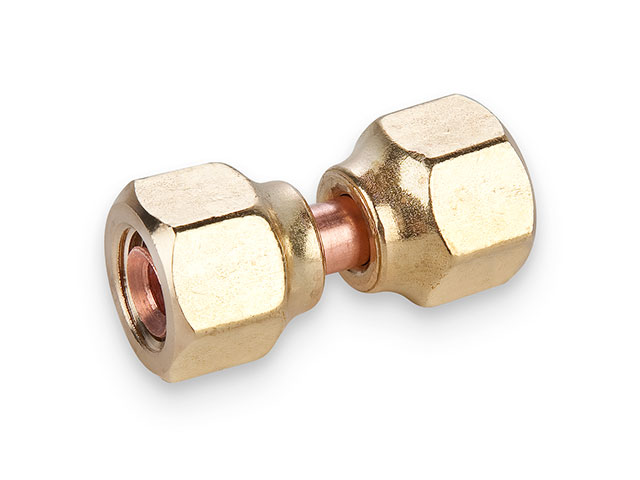

14FSV-8 Swivel Nut Valve Connector 14FSV

Swivel Nut Valve Connector 14FSV

Parker 45° Flare Brass Swivel Nut Valve Connector - Ref. SAE J512 and J513 010108

Part #: 14FSV-8 Manufacturer: Parker
Price/UOM: $12.46In Stock!
Availability : 51 In Stock

Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.

Product Attributes

Outer Diameter 1: 1/2 Inch
Thread 1: 3/4-16 UN/UNF
Material: Brass
Series: 45° Flare
Configuration Type: Auxiliary
Configuration Sub-Type: Nut
Outer Diameter 1 Inch/mm: Inch
Inch/Metric: Inch
Thread 1 Type: UN/UNF
Operating Temperature: -65°F to +250°F
Parker Division: Fluid Systems Connector (Brass Products)
Parker Group: Fluid Connector
SAE Compliance: J512 and J513
SAE Reference: SAE 010108
Pressure Rating: 750 PSI

Safety Notice
WARNING: Products may contain a chemical known to the State of California to cause birth defects, cancer or other reproductive harm. For more information go to

Part Number Tags: N/A
