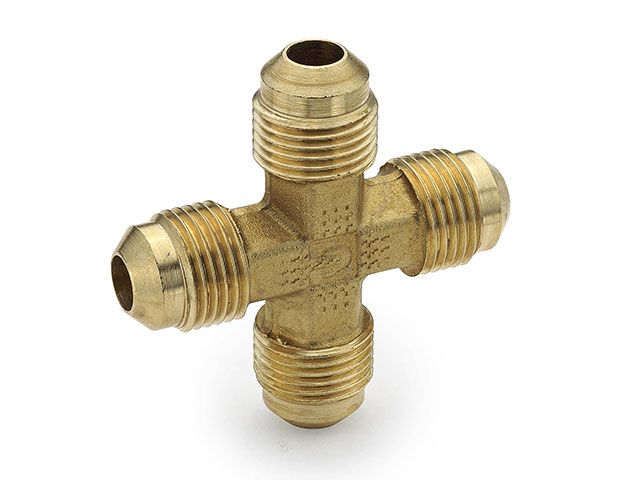

147F-6 Cross 147F

Cross 147F

Parker 45° Flare Brass Cross - Ref. SAE J512 and J513 010501

Part #: 147F-6 Manufacturer: Parker
Price/UOM: $25.81In Stock!
Availability : 8 In Stock
UOM: EA

Description:
Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.


Product Attributes


Outer Diameter 1: 3/8 Inch
Outer Diameter 2: 3/8 Inch
Outer Diameter 3: 3/8 Inch
Outer Diameter 4: 3/8 Inch
Thread 1: 5/8-18 UN/UNF
Thread 2: 5/8-18 UN/UNF
Thread 3: 5/8-18 UN/UNF
Thread 4: 5/8-18 UN/UNF
Material: Brass
UOM: EA
Series: 45° Flare
Configuration Type: Flare to Flare
Configuration Sub-Type: Cross
Outer Diameter 1 Inch/mm: Inch
Outer Diameter 2 Inch/mm: Inch
Outer Diameter 3 Inch/mm: Inch
Outer Diameter 4 Inch/mm: Inch
Inch/Metric: Inch
Thread 1 Type: UN/UNF
Thread 2 Type: UN/UNF
Thread 3 Type: UN/UNF
Thread 4 Type: UN/UNF
Operating Temperature: -65°F to +250°F
Parker Division: Fluid Systems Connector (Brass Products)
Parker Group: Fluid Connector
SAE Compliance: J512 and J513
SAE Reference: SAE 010501
Body Shape: Forged
Pressure Rating: 1000 PSI
