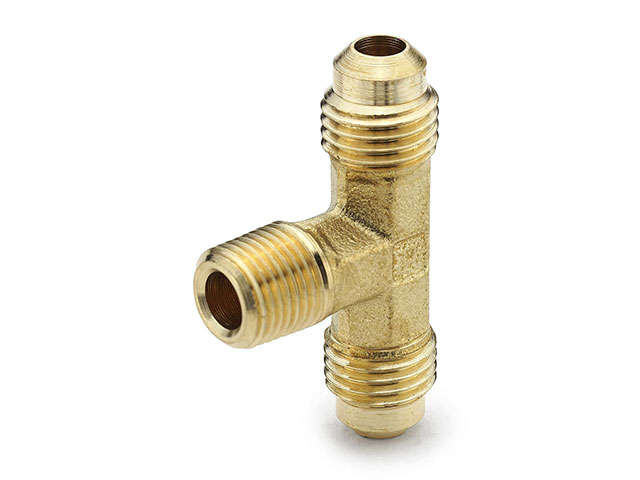

145F-4-2 Male Branch Tee 145F

Male Branch Tee 145F

Parker 45° Flare Brass Male Branch Tee - Ref. SAE J512 and J513 010425

Part #: 145F-4-2 Manufacturer: Parker
Price/UOM: $4.51In Stock!
Availability : 581 In Stock

Parker 45° flare fittings meet the functional requirements of SAE J512 and J513 and are listed with Underwriter’s Laboratories. For use with copper, brass, aluminum or steel tubing that can be flared to 45°.

Product Attributes

Outer Diameter 1: 1/4 Inch
Outer Diameter 2: 1/4 Inch
Thread 1: 7/16-20 UN/UNF
Thread 2: 7/16-20 UN/UNF
Thread 3: 1/8 NPT
Material: Brass
Series: 45° Flare
Configuration Type: Flare to Male
Configuration Sub-Type: Male Branch Tee
Outer Diameter 1 Inch/mm: Inch
Outer Diameter 2 Inch/mm: Inch
Inch/Metric: Inch
Thread 1 Type: UN/UNF
Thread 2 Type: UN/UNF
Thread 3 Type: NPT
Operating Temperature: -65°F to +250°F
Parker Division: Fluid Systems Connector (Brass Products)
Parker Group: Fluid Connector
SAE Compliance: J512 and J513
SAE Reference: SAE 010425
Body Shape: Forged
Pressure Rating: 1400 PSI

Safety Notice
WARNING: Products may contain a chemical known to the State of California to cause birth defects, cancer or other reproductive harm. For more information go to

Part Number Tags: N/A
